PHONO PLUGS
160
JACKS AND PLUGS
PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

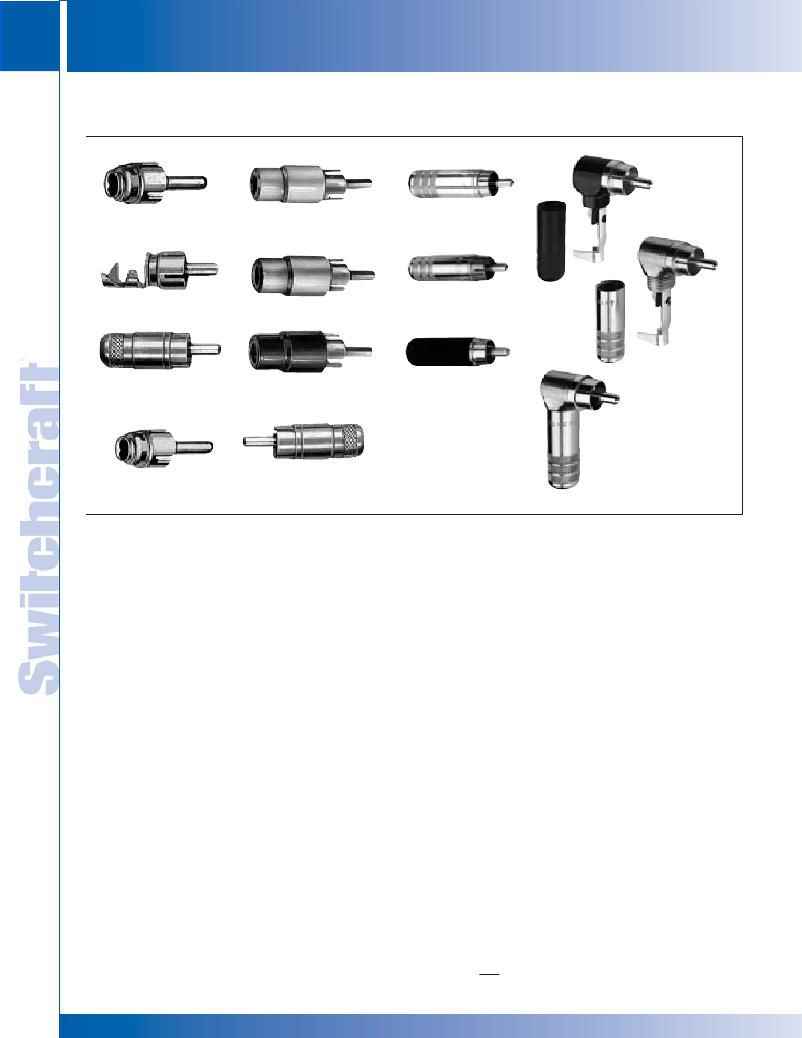

PHONO PLUGS
3502RABAU
3501M
3501MC
3502
3504M
35581
35585
35582
3507
3502A
3502AAU
3502ABAU
3502RA
3502RAAU
FEATURES
? Wide variety of styles for a wide range of applications.
? 3502A and 3502RA Series offer solid pin, large solder cups.
? 3558 Series utilize plastic handles for low cost applications.
? 3507 and 3504M have low-loss nylon insulators for
RF applications. Can be used at 1 kW at 30 MHz.
? 3501M and 3501MC have the handle removed for tight spaces
? Options include nickel and gold plated, or black epoxy finishes.
SPECIFICATIONS
MATERIALS
Pin: Nickel or gold plated, copper alloy
Sleeve: Nickel or gold plated, copper alloy
Handle: Nickel or gold plated, or black epoxy finish, copper alloy
(3558 Series: Thermoplastic)
Cable Clamp: Tin, copper alloy
Insulator: Rigid Plastic
ELECTRICAL
Current Carry @ Working Voltage (typical *D.O.M.J.): 6A
Contact Resistance (typical *D.O.M.J.): < 0.20 Ohms
Dielectric Withstanding Voltage: 500 VAC min.
Insulation Resistance @ 500VDC: 2,000 megohms min
Working Voltage: 250VAC, 140VDC
MECHANICAL
Life: *D.M.O.J
Temperature Range: -40 ∞ C to +85 ∞ C
*D.M.O.J. –Dependent On Mating Jack
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
